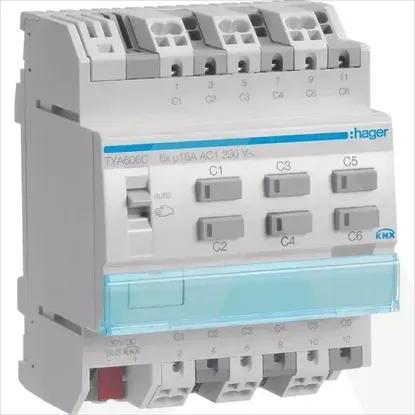

Main Product Image

TYA606C

Code: 1763200

ManufacturerRAZNO
Catalog numberTYA606C
Type
EAN code3250616059801

Details

  • Installation bus systems
  • Switch actuator for bus system
  • 1 KOM
  • HAGER

Technical specifications

Bus system KNX radio

No

Bus system Powernet

No

Bus system radio frequent

No

Bus system LON

No

Other bus systems

None

Width in number of modular spacings

4

Radio frequent bidirectional

No

With LED indication

Yes

Bus system KNX

Yes

Local operation/hand operation

Yes

Degree of protection (IP)

IP20

Bus module detachable

No

With bus connection

Yes

Max. switching power

8625W

Max. switching current

16A

Different phases connectable

Yes

Rated current

16A

Mounting method

DRA (DIN-rail adapter)

Output power

2300W

Max. number of switching contacts

6

Rated operating voltage

230 - 230V

Modular expandability

No

Suitable for C-load

No

Number of digital inputs

0

Max. switching power LED

414W


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
