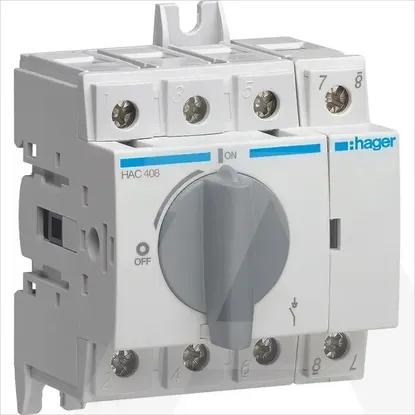

HAC408

Version as maintenance-/service switch

Yes

Version as main switch

Yes

Version as emergency stop installation

No

Version as reversing switch

No

Number of switches

1

Rated operating voltage

380 - 415V

Version as safety switch

Yes

Max. rated operation voltage Ue AC

415V

Rated permanent current at AC-21, 400 V

80A

Rated permanent current at AC-23, 400 V

80A

Rated permanent current Iu

80A

Conditioned rated short-circuit current Iq

50kA

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally closed contact

0

Number of poles

4

Number of auxiliary contacts as normally open contact

0

Switching power at 400 V

52kW

Motor drive integrated

No

Rated operation power at AC-23, 400 V

36kW

Rated short-time withstand current lcw

1.5kA

Device construction

Built-in device fixed built-in technique

Suitable for front mounting 4-hole

No

Voltage release optional

No

Suitable for front mounting centre

No

Motor drive optional

No

Suitable for distribution board installation

Yes

Suitable for floor mounting

Yes

Colour control element

Grey

Suitable for intermediate mounting

No

Width in number of modular spacings

4

Interlockable

Yes

Type of control element

Short thumb-grip

Type of electrical connection of main circuit

Screw connection

With pre-assembled cabling

No

Degree of protection (IP), front side

IP20

Degree of protection (NEMA)

Other

Depth

69mm

Width

70mm

Height

76mm
