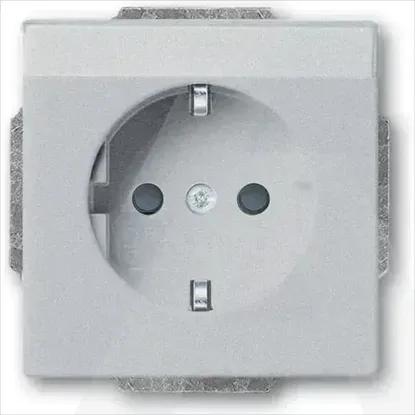

Details
- Domestic switching devices
- Socket outlet
- 1 KOM
- ABB
Technical specifications
Model
Protective contact (SCHUKO)
Halogen free
Yes
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with claw and screw
Surface finishing
Matt
Colour
Aluminium
Material
Plastic
Surface protection
Lacquered
RAL-number (similar)
9006
Material quality
Thermoplastic
Transparent
No
Impact strength
IK03
Suitable for degree of protection (IP)
IP20
Depth of device
32mm
Label space/information surface
Yes
With hinged lid
No
Number of modules (module system)
1
Width of device
71mm
Nominal voltage
250V
Height of device
12mm
Frequency
50 - 50Hz
Number of units
1
Connection type
Push-in clamp
Imprint/indication
Without imprint
Lockable
No
Anti-bacterial treatment
No
Insulated mounting
Yes
Over voltage protection
No
With signal lamp
No
Rotated central insert
No
For heavy conditions (according to VDE)
No
Fault current protection
No
With enhanced contact protection
Yes
With function lighting
No
Eject-mechanism
No
With on/off switch
No
With built-in USB power supply
No
Number of phases
1
Min. depth of built-in installation box
40mm
With orientation lighting
No
With miniature fuse
No
Special power supply
No special power supply
With loop through function
Yes
Protective earth pin round
No
Number of active pins (round)
2
Protective contact
Yes
Concurrently switching neutral conductor
No
Number of active contacts (square)
0
Protective contact
Earthing clips
Number of socket outlets switchable
-
Number of loop throughs
-
Maximum current rating of USB power supply
-A
Compatible with Apple HomeKit
No
Number of ports USB-C
-
Number of active pins (flat)
0
Rated fault current
0mA
Number of ports USB-A
-
Compatible with Google Assistant
No
Metallic colour
No
With Wi-Fi signal repeater
No
Compatible with Amazon Alexa
No
IFTTT support available
No
With built-in bluetooth speaker
No
For heavy conditions (according to VDE)
No
Compliant with UK Building Regulations Part M
No
Nominal current
16A
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
