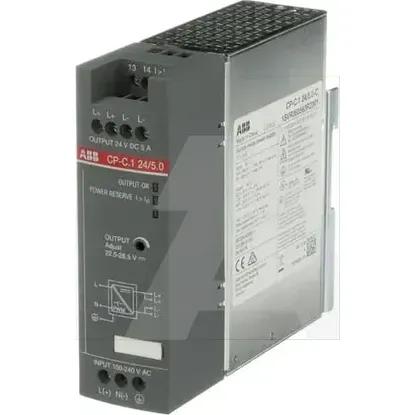

1SVR360563R2001 | CP-C.1 24/5.0-C
Code: 1749176
Details
- Low-voltage industrial components
- DC-power supply
- 1 KOM
- ABB
Technical specifications
Width in number of modular spacings
-
Voltage type of supply voltage
AC/DC
1st secondary output voltage
24 - 24V
2nd secondary output voltage
0 - 0V
3rd secondary output voltage
0 - 0V
Max. output current 1
7.5A
Max. output current 2
0A
Max. output current 3
0A
Secondary voltage adjustable
No
Nominal value output voltage 1
24V
Nominal value output voltage 2
0V
Nominal value output voltage 3
0V
Nominal value output current 2
0A
Nominal value output current 3
0A
Nominal value output current 1
5A
Short-circuit-proof
Yes
Rated supply voltage at AC 50 Hz
85 - 264V
Rated supply voltage at AC 60 Hz
85 - 264V
Rated supply voltage at DC
90 - 300V
Output voltage stabilized
Yes
Power consumption
132VA
Power output
120W
Stabilized
Yes
Type of electric connection
Screw connection
Rail mounting possible
Yes
Wall mounting possible
No
Modular version
No
Built-in width
40mm
Built-in height
129.4mm
Direct mounting possible
No
Width
40mm
Height
129.4mm
Depth
136mm
Suitable for safety functions
No
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Degree of protection (IP)
IP20
Degree of protection (NEMA)
1
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
