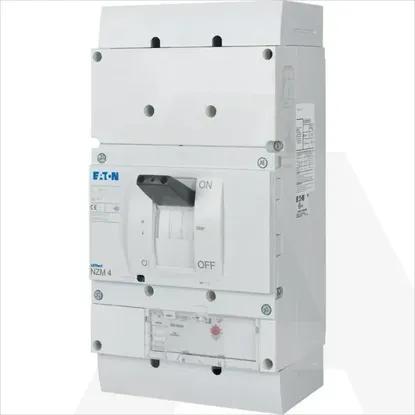

Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- EATON
Technical specifications
Rated permanent current Iu
800A
Rated voltage
690 - 690V
Overload release current setting
800 - 800A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50kA
Adjustment range short-term delayed short-circuit release
0 - 0A
Adjustment range undelayed short-circuit release
1600 - 9600A
Integrated earth fault protection
No
Device construction
Built-in device fixed built-in technique
Number of auxiliary contacts as normally open contact
0
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
No
Number of auxiliary contacts as normally closed contact
0
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as change-over contact
0
Number of poles
3
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of control element
Rocker lever
Motor drive optional
Yes
Degree of protection (IP)
IP20
Complete device with protection unit
Yes
With switched-off indicator
No
With integrated under voltage release
No
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
