Details
- Domestic switching devices
- Socket outlet
- 1 KOM
- VIMAR
Technical specifications
Model
Other
Number of units
1
Number of modules (module system)
2
Imprint/indication
None
Number of socket outlets switchable
0
With hinged lid
No
Connection type
Screwed terminal
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7024
Metallic colour
No
Transparent
No
Lockable
No
Insulated mounting
No
Special power supply
Other
Material quality
Thermoplastic
Material
Plastic
Halogen free
Yes
Mounting method
Flush mounted (plaster)
With on/off switch
No
Type of fastening
Snap mounting (engagement)
Surface protection
Untreated
Surface finishing
Matt
Nominal current
16A
Rotated central insert
No
Nominal voltage
250V
Frequency
50.00 - 60.00Hz
Suitable for degree of protection (IP)
IP20
With loop through function
No
Eject-mechanism
No
Impact strength
Other
With orientation lighting
No
With function lighting
No
Fault current protection
No
Over voltage protection
No
With miniature fuse
No
Depth of device
38.30mm
Height of device
49.00mm
Width of device
44.80mm
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.

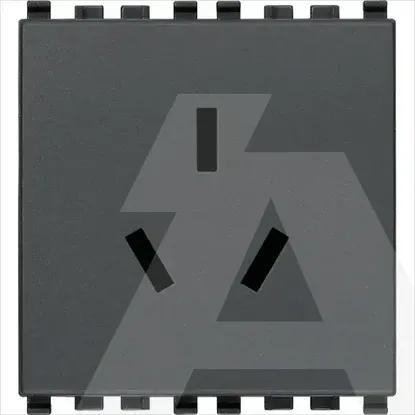

20254 | 2P+E 16A Chinese SICURY outlet grey
