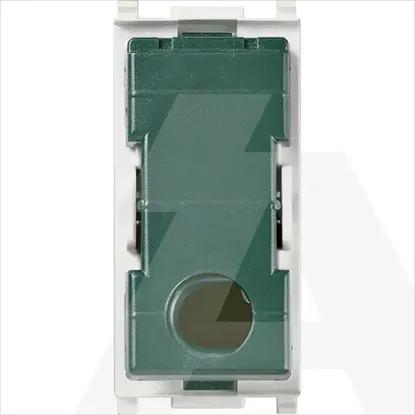

14015.0 | 2P 16AX 1-way switch mechanism

Assembly arrangement

Modular device for domestic switching devices

Number of rockers

1

Mounting method

Flush mounted (plaster)

Type of fastening

Engage (snap)

Material

Plastic

Material quality

Thermoplastic

Method of operation

Rocker/button

Surface protection

Untreated

Wiring system

2-pole switch

With mounting plate

No

Type of lighting

LED exchangeable

Halogen free

Yes

Illumination

Optional

RAL-number (similar)

9003

Surface finishing

Glossy

Number of modules (module system)

1

Function lighting

Control and orientation

Label space/information surface

Yes

Colour

Green

Push button switch

Yes

Nominal voltage

250V

Feedback-signal contact

No

Rated current

16.00A

Connection type

Screwed terminal

Suitable for degree of protection (IP)

IP40

Depth of device

38.70mm

Height of device

49.00mm

Width of device

22.30mm

Washing machine switch

Yes

Built-in depth

24.00mm
