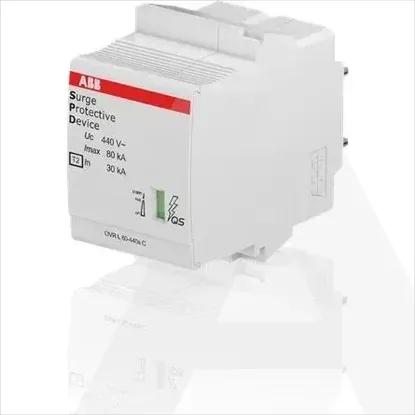

2CTB815708R5500 | OVR T2 80-440s C QS
Code: 1661339
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
88,68 €
Neto88,68 €
RP110,85 €
DetailsWarehouse statesTechnical specifications
Details
- Earthing, lightning and surge protection
- Surge protection device for power supply systems
- 1 KOM
- ABB
Technical specifications
Max. continuous voltage DC
-V
Nominal voltage DC
-V
Max. PV-voltage
-V
System configuration DC
No
System configuration IT
Yes
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-C-S
Yes
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Number of conductors (without earthing)
1
Nominal discharge surge current (8/20)
20kA
Max. discharge surge current (8/20)
20kA
Nominal voltage AC
400V
Max. continuous voltage AC
440V
Voltage protection level
1.4kV
Voltage protection level L-N
1.8kV
Max. overcurrent protection device, parallel connection (fuse)
160A
Max. overcurrent protection device, series connection (fuse)
160A
Voltage protection level N-PE
1.4kV
Short-circuit breaking capacity (Isccr)
100kA
Integrated short-circuit protection
No
Integrated short-circuit protection selective to fuse gG
-A
Integrated backup fuse
No
Leakage-current free
No
Mounting method
Other
Construction size
1 modular spacing
Max. conductor cross section solid (solid, stranded)
35mm²
Max. conductor cross section flexible (fine-strand)
25mm²
With remote signalling contact
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
