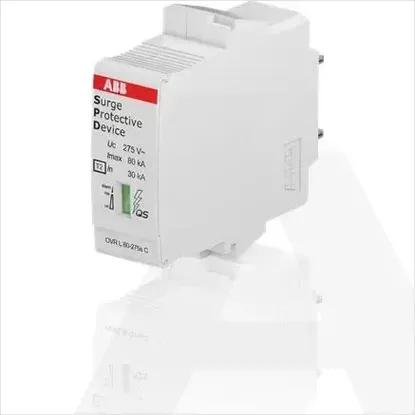

2CTB815708R2600 | OVR T2 80-275s C QS

Max. continuous voltage DC

-V

Nominal voltage DC

-V

Max. PV-voltage

-V

System configuration other

No

System configuration TN-C-S

Yes

System configuration DC

No

System configuration TN-C

No

System configuration TN

Yes

System configuration TT

Yes

System configuration IT

No

Max. continuous voltage AC

275V

Mounting method

DIN rail (top hat rail) 35 mm

Max. discharge surge current (8/20)

80kA

Voltage protection level

1.4kV

Voltage protection level N-PE

1.4kV

Nominal discharge surge current (8/20)

20kA

Nominal voltage AC

230V

Short-circuit breaking capacity (Isccr)

100kA

Signalling at the device

Optic

Construction size

1 modular spacing

Max. conductor cross section flexible (fine-strand)

25mm²

Max. conductor cross section solid (solid, stranded)

35mm²

Voltage protection level L-N

1.4kV

Degree of protection (IP)

IP20

System configuration TN-S

Yes

Number of conductors (without earthing)

1

Integrated backup fuse

Yes

With remote signalling contact

No

Category type 2

Yes
