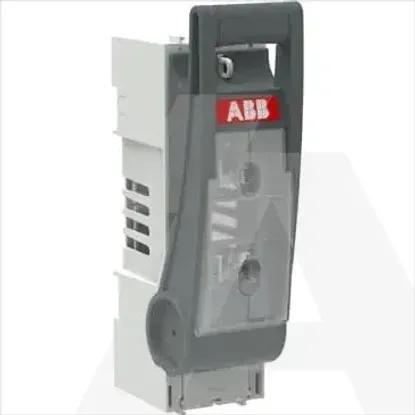

Main Product Image

1SEP600122R0001 | XLP2-1P

Code: 1661136

ManufacturerRAZNO
Catalog number1SEP600122R0001
Type
EAN code7025840086666

Details

  • Low-voltage industrial components
  • Fuse switch disconnector
  • 1 KOM
  • ABB

Technical specifications

Type of control element

Other

Number of poles

1

Rated permanent current Iu

315A

Motor drive integrated

No

Type of electrical connection of main circuit

Bolt connection

Motor drive optional

No

Degree of protection (IP), front side

IP30

Suitable for floor mounting

No

Conditioned rated short-circuit current Iq

50kA

Max. rated operation voltage Ue AC

690V

Version as main switch

Yes

Rated short-time withstand current lcw

-kA

Version as emergency stop installation

No

Cable entry

Other

Suitable for front mounting

No

Rated operation power at AC-23, 400 V

-kW

Version as safety switch

Yes

With error protection

No

Suitable for busbar mounting

Yes

Position control element

Front side

Suitable for fuses

NH2

Equipped with connectors

Yes


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
