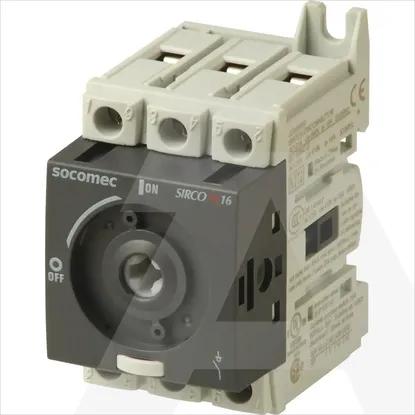

Main Product Image

22003000 | SIRCO M1 3X16A

Code: 1658863

ManufacturerRAZNO
Catalog number22003000
Type
EAN code3596031825363

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • SOCOMEC

Technical specifications

Number of poles

3

Type of control element

Other

Rated permanent current Iu

16A

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Motor drive optional

No

Motor drive integrated

No

Type of electrical connection of main circuit

Screw connection

Number of auxiliary contacts as change-over contact

0

Device construction

Built-in device fixed built-in technique

Rated operation power at AC-3, 400 V

-kW

Degree of protection (IP), front side

IP20

Suitable for floor mounting

Yes

Suitable for intermediate mounting

Yes

Suitable for distribution board installation

Yes

Max. rated operation voltage Ue AC

800V

Rated short-time withstand current lcw

1.26kA

Conditioned rated short-circuit current Iq

50kA

Rated operating voltage

400 - 690V

Version as emergency stop installation

Yes

Version as reversing switch

No

Suitable for front mounting 4-hole

Yes

Rated permanent current at AC-21, 400 V

16A

Voltage release optional

No

Version as maintenance-/service switch

Yes

Interlockable

Yes

Number of switches

1

Colour control element

Other

Rated operation power at AC-23, 400 V

7.5kW

Version as main switch

Yes

Suitable for front mounting centre

No

Version as safety switch

Yes

Switching power at 400 V

7.5kW

Rated permanent current at AC-23, 400 V

16A


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
