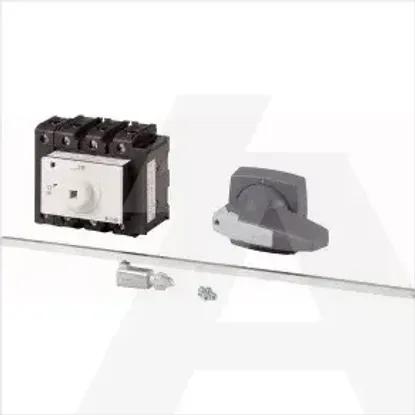

Main Product Image

P3-63/M4/K2-PG/N/HI11

Code: 1641100

ManufacturerRAZNO
Catalog number172817
Type
EAN code4015081694013

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • EATON

Technical specifications

Number of poles

4

Type of control element

Toggle

Rated permanent current Iu

63A

Number of auxiliary contacts as normally closed contact

1

Number of auxiliary contacts as normally open contact

1

Motor drive optional

No

Motor drive integrated

No

Type of electrical connection of main circuit

Screw connection

Number of auxiliary contacts as change-over contact

0

Device construction

Built-in device fixed built-in technique

Rated operation power at AC-3, 400 V

30kW

Degree of protection (NEMA)

Other

Degree of protection (IP), front side

IP65

Suitable for floor mounting

Yes

Suitable for intermediate mounting

Yes

Suitable for distribution board installation

No

Max. rated operation voltage Ue AC

690V

Rated short-time withstand current lcw

1.26kA

Conditioned rated short-circuit current Iq

4kA

Rated operating voltage

690 - 690V

Version as reversing switch

No

Suitable for front mounting 4-hole

No

Rated permanent current at AC-21, 400 V

63A

Voltage release optional

No

Version as maintenance-/service switch

Yes

Version as emergency stop installation

No

Interlockable

Yes

Number of switches

1

Colour control element

Grey

Version as main switch

Yes

Rated operation power at AC-23, 400 V

30kW

Suitable for front mounting centre

No

Version as safety switch

No

Switching power at 400 V

30kW

Rated permanent current at AC-23, 400 V

63A


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
