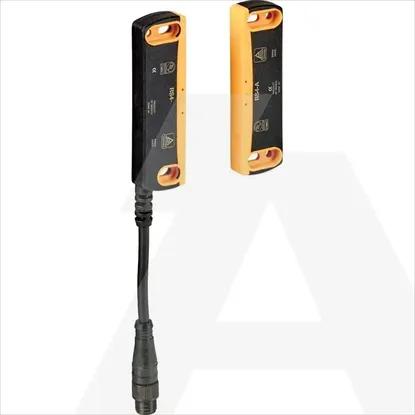

Main Product Image

RS4-02-Q4

Code: 1639076

ManufacturerRAZNO
Catalog number177298
Type
EAN code4015081717514

Details

  • Sensors
  • Position switch with separate actuator
  • 1 KOM
  • EATON

Technical specifications

With status indication

No

Number of safety auxiliary contacts

2

Number of contacts as normally closed contact

2

Width sensor

26mm

Suitable for safety functions

Yes

Height of sensor

13mm

Length of sensor

52mm

Number of contacts as normally open contact

0

Number of contacts as change-over contact

0

Forced opening

No

Rated operation current Ie at DC-13, 125 V

0A

Rated operation current Ie at AC-15, 24 V

0A

Type of switching contact

Other

Rated operation current Ie at DC-13, 24 V

0.03A

Rated operation current Ie at AC-15, 125 V

0A

Rated operation current Ie at AC-15, 230 V

0A

Rated operation current Ie at DC-13, 230 V

0A

Type of electric connection

Connector M12

Construction type housing

Cuboid

Type of interface for safety communication

None

Ambient temperature during operating

-10 - 55°C

Coating housing

Plastic-coated

Explosion safety category for dust

None

Type of interface

None

Explosion safety category for gas

None

Degree of protection (IP)

IP67

Degree of protection (NEMA)

Other

Material housing

Plastic


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
