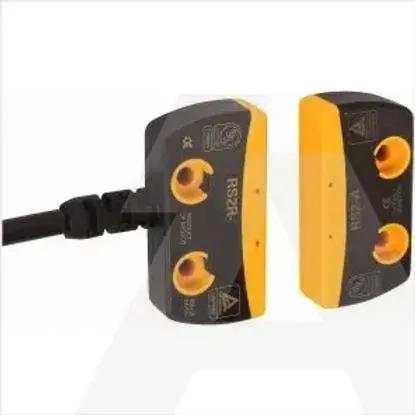

RS2R-11-C3

Code: 1639061

ManufacturerRAZNO
Catalog number177293
Type
EAN code4015081717460

Details

  • Sensors
  • Position switch with separate actuator
  • 1 KOM
  • EATON

Technical specifications

With status indication

No

Suitable for safety functions

Yes

Number of safety auxiliary contacts

1

Length of sensor

52mm

Width sensor

26mm

Height of sensor

13mm

Forced opening

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Type of switching contact

Other

Rated operation current Ie at AC-15, 230 V

0A

Rated operation current Ie at AC-15, 24 V

0A

Rated operation current Ie at DC-13, 230 V

0A

Rated operation current Ie at AC-15, 125 V

0A

Rated operation current Ie at DC-13, 125 V

0A

Coating housing

Plastic-coated

Material housing

Plastic

Construction type housing

Cuboid

Rated operation current Ie at DC-13, 24 V

0.3A

Type of interface for safety communication

None

Number of contacts as change-over contact

0

Type of electric connection

With cable preassembled

Type of interface

None

Explosion safety category for gas

None

Ambient temperature during operating

-10 - 55°C

Degree of protection (IP)

IP67

Degree of protection (NEMA)

Other

Explosion safety category for dust

None


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
