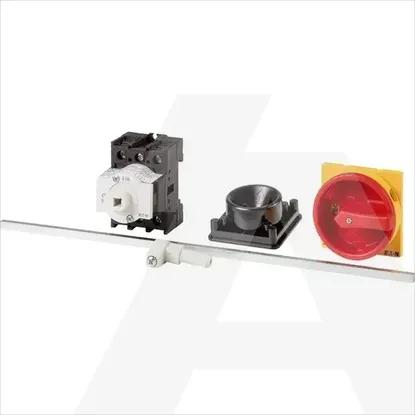

Main Product Image

P1-25/M4/SVB

Code: 1638766

ManufacturerRAZNO
Catalog number172875
Type
EAN code4015081694549

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Version as emergency stop installation

Yes

Version as reversing switch

No

Rated permanent current Iu

25A

Number of switches

1

Max. rated operation voltage Ue AC

690V

Rated short-time withstand current lcw

0.64kA

Rated permanent current at AC-23, 400 V

25A

Rated operation power at AC-3, 400 V

7.5kW

Rated permanent current at AC-21, 400 V

25A

Number of poles

3

Version as safety switch

No

Conditioned rated short-circuit current Iq

50kA

Switching power at 400 V

13kW

Rated operation power at AC-23, 400 V

13kW

Motor drive optional

No

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Device construction

Built-in device fixed built-in technique

Motor drive integrated

No

Rated operating voltage

690 - 690V

Suitable for floor mounting

Yes

Number of auxiliary contacts as normally closed contact

0

Suitable for distribution board installation

No

Suitable for intermediate mounting

Yes

Colour control element

Red

Suitable for front mounting 4-hole

No

Degree of protection (IP), front side

IP65

Height

70mm

Interlockable

Yes

With pre-assembled cabling

No

Depth

340mm

Type of control element

Door coupling rotary drive

Degree of protection (NEMA)

12

Voltage release optional

No

Suitable for front mounting centre

No

Width

72mm

Type of electrical connection of main circuit

Screw connection


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
