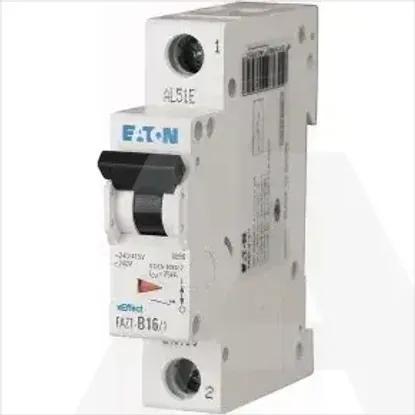

FAZT-C10/1

Rated insulation voltage Ui

440V

Voltage type

AC

Rated voltage

240V

Release characteristic

C

Built-in depth

70.5mm

Number of poles (total)

1

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

15kA

Number of protected poles

1

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

15kA

Rated current

10A

Power loss

1.5W

Current limiting class

3

Frequency

50 - 60Hz

Width in number of modular spacings

1

Concurrently switching neutral conductor

No

Additional equipment possible

Yes

Flush-mounted installation

No

Explosion-proof

No

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

25kA

Degree of protection (IP)

IP20

Ambient temperature during operating

-25 - 75°C

Pollution degree

2

Connectable conductor cross section solid-core

1 - 25mm²

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

25kA

Over voltage category

3

Connectable conductor cross section multi-wired

1 - 25mm²
