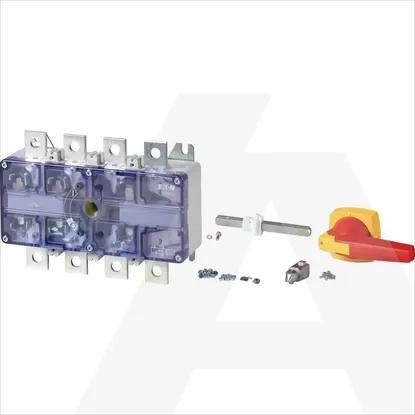

DMV-400/3/M4/P-R

Version as main switch

Yes

Rated operating voltage

690 - 690V

Number of switches

1

Rated permanent current Iu

400A

Rated permanent current at AC-23, 400 V

333A

Version as reversing switch

No

Number of poles

3

Switching power at 400 V

400kW

Version as safety switch

No

Conditioned rated short-circuit current Iq

50kA

Version as maintenance-/service switch

No

Number of auxiliary contacts as normally closed contact

0

Version as emergency stop installation

Yes

Motor drive integrated

No

Max. rated operation voltage Ue AC

690V

Rated operation power at AC-23, 400 V

400kW

Rated permanent current at AC-21, 400 V

400A

Rated operation power at AC-3, 400 V

0kW

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Voltage release optional

No

Rated short-time withstand current lcw

12kA

Motor drive optional

No

Suitable for floor mounting

Yes

Suitable for front mounting centre

No

Suitable for intermediate mounting

Yes

Suitable for front mounting 4-hole

No

Device construction

Built-in device fixed built-in technique

Suitable for distribution board installation

No

Colour control element

Red

Width

150mm

Height

150mm

Degree of protection (NEMA)

Other

With pre-assembled cabling

No

Degree of protection (IP), front side

IP20

Interlockable

Yes

Type of electrical connection of main circuit

Screw connection

Depth

300mm

Type of control element

Short thumb-grip
