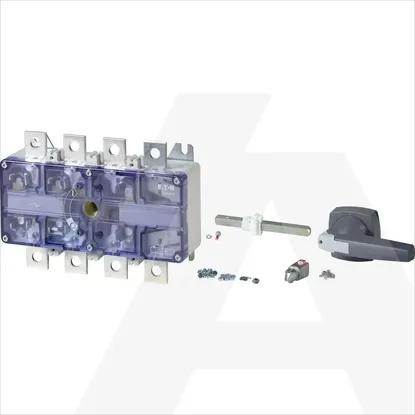

DMV-250/3/M4/P-G

Version as main switch

Yes

Version as reversing switch

No

Version as safety switch

No

Version as maintenance-/service switch

No

Max. rated operation voltage Ue AC

690V

Version as emergency stop installation

No

Rated operating voltage

690 - 690V

Number of switches

1

Rated permanent current Iu

250A

Rated operation power at AC-3, 400 V

0kW

Rated permanent current at AC-21, 400 V

250A

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Number of poles

3

Conditioned rated short-circuit current Iq

50kA

Number of auxiliary contacts as normally closed contact

0

Rated short-time withstand current lcw

12kA

Switching power at 400 V

250kW

Rated operation power at AC-23, 400 V

250kW

Rated permanent current at AC-23, 400 V

250A

Voltage release optional

No

Motor drive integrated

No

Motor drive optional

No

Device construction

Built-in device fixed built-in technique

Suitable for floor mounting

Yes

Suitable for front mounting centre

No

Suitable for front mounting 4-hole

No

Type of control element

Short thumb-grip

Suitable for intermediate mounting

Yes

Colour control element

Grey

Interlockable

Yes

Suitable for distribution board installation

No

With pre-assembled cabling

No

Type of electrical connection of main circuit

Screw connection

Degree of protection (IP), front side

IP65

Width

150mm

Degree of protection (NEMA)

12

Height

150mm

Depth

300mm
