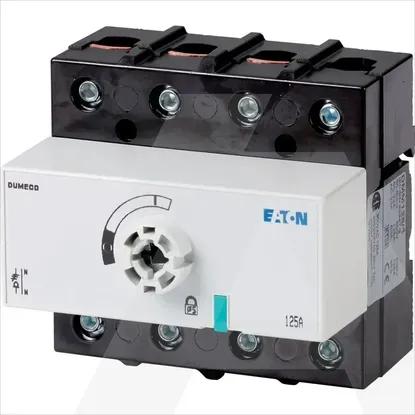

DMM-125/3-SK

Version as safety switch

No

Version as emergency stop installation

No

Number of switches

1

Version as maintenance-/service switch

Yes

Version as reversing switch

No

Max. rated operation voltage Ue AC

690V

Rated permanent current Iu

125A

Rated operating voltage

690 - 690V

Rated operation power at AC-3, 400 V

0kW

Rated permanent current at AC-23, 400 V

66A

Rated permanent current at AC-21, 400 V

125A

Rated operation power at AC-23, 400 V

30kW

Rated short-time withstand current lcw

2.5kA

Number of poles

3

Number of auxiliary contacts as normally open contact

0

Motor drive integrated

No

Number of auxiliary contacts as change-over contact

0

Conditioned rated short-circuit current Iq

50kA

Motor drive optional

No

Number of auxiliary contacts as normally closed contact

0

Device construction

Built-in device fixed built-in technique

Voltage release optional

No

Suitable for distribution board installation

Yes

Suitable for intermediate mounting

No

Version as main switch

Yes

Suitable for front mounting 4-hole

No

Suitable for floor mounting

Yes

Suitable for front mounting centre

No

Switching power at 400 V

0kW

Type of control element

Other

Interlockable

No

Colour control element

Other

With pre-assembled cabling

No

Type of electrical connection of main circuit

Screw connection

Degree of protection (NEMA)

Other

Width

120mm

Degree of protection (IP), front side

IP20

Width in number of modular spacings

6

Height

150mm

Depth

120mm
