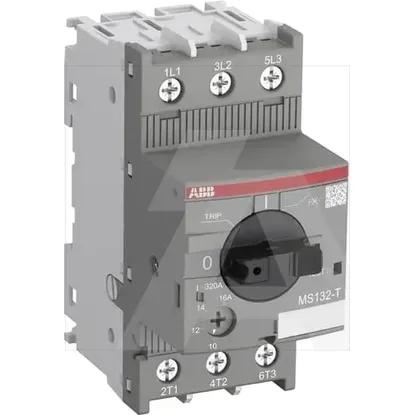

Main Product Image

1SAM340000R1014 | MS132-25T

Code: 1631244

ManufacturerRAZNO
Catalog number1SAM340000R1014
Type
EAN code4013614485046

Details

  • Low-voltage industrial components
  • Power circuit-breaker for trafo/generator/installation protection
  • 1 KOM
  • ABB

Technical specifications

Adjustment range short-term delayed short-circuit release

- - -A

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Rated permanent current Iu

25A

Rated voltage

690 - 690V

Integrated earth fault protection

No

DIN rail (top hat rail) mounting optional

Yes

Device construction

Complete device in housing

Position of connection for main current circuit

Front side

Motor drive optional

No

Overload release current setting

20 - 25A

Type of electrical connection of main circuit

Screw connection

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

50kA

Degree of protection (IP)

IP20

Suitable for DIN rail (top hat rail) mounting

Yes

Adjustment range undelayed short-circuit release

500 - 500A

Number of poles

3

With switched-off indicator

Yes

With under voltage release

No

Complete device with protection unit

Yes

Type of control element

Turn button

Motor drive integrated

No


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
