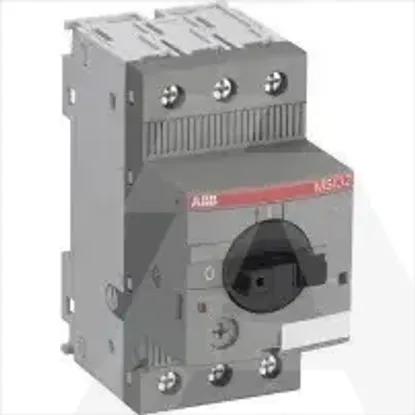

Main Product Image

1SAM340000R1004 | MS132-0.63T

Code: 1631234

ManufacturerRAZNO
Catalog number1SAM340000R1004
Type
EAN code4013614484940

Details

  • Low-voltage industrial components
  • Power circuit-breaker for trafo/generator/installation protection
  • 1 KOM
  • ABB

Technical specifications

Adjustment range short-term delayed short-circuit release

- - -A

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Rated permanent current Iu

0.63A

Rated voltage

690 - 690V

Adjustment range undelayed short-circuit release

12.6 - 12.6A

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

100kA

Type of electrical connection of main circuit

Screw connection

Overload release current setting

0.40 - 0.63A

Integrated earth fault protection

No

DIN rail (top hat rail) mounting optional

Yes

With under voltage release

No

Device construction

Complete device in housing

Suitable for DIN rail (top hat rail) mounting

Yes

Type of control element

Turn button

Complete device with protection unit

Yes

With switched-off indicator

Yes

Motor drive integrated

No

Position of connection for main current circuit

Front side

Motor drive optional

No

Number of poles

3

Degree of protection (IP)

IP20


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
