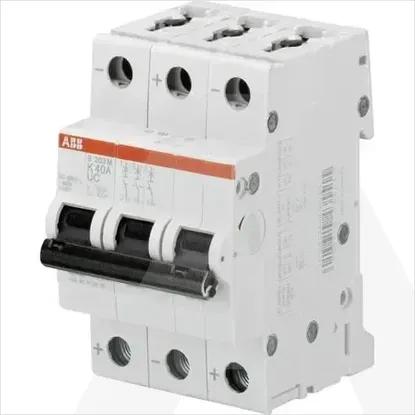

2CDS273061R0557 | S203M-K40UC
Code: 1617848
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
110,93 €
Neto110,93 €
RP138,66 €
DetailsWarehouse statesTechnical specifications
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Degree of protection (IP)
IP20
Voltage type
AC/DC
Suitable for flush-mounted installation
No
Width in number of modular spacings
3
Rated current
40A
Built-in depth
69mm
Rated voltage
400V
Release characteristic
K
Ambient temperature during operating
-25 - 55°C
Connectable conductor cross section multi-wired
0 - 25mm²
Number of protected poles
3
Connectable conductor cross section solid-core
0 - 35mm²
Number of poles (total)
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated impulse withstand voltage Uimp
4kV
Rated insulation voltage Ui
440V
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Additional equipment possible
Yes
Pollution degree
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Frequency
50 - 60Hz
Concurrently switching neutral conductor
No
Over voltage category
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Power loss
11.28W
Flush-mounted installation
No
Explosion-proof
No
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
