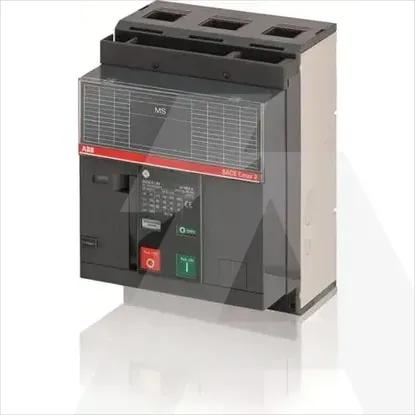

1SDA073392R1 | E1.2B/MS 630 3P F F

Type of control element

Push button

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Rated operation power at AC-23, 400 V

-kW

Interlockable

No

Switching power at 400 V

-kW

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Version as emergency stop installation

No

Version as safety switch

No

Version as reversing switch

No

Max. rated operation voltage Ue AC

690V

Number of switches

0

Rated permanent current at AC-23, 400 V

630A

Rated operating voltage

690 - 690V

Rated permanent current at AC-21, 400 V

630A

Number of poles

3

Rated permanent current Iu

630A

Motor drive optional

Yes

Motor drive integrated

No

Version as maintenance-/service switch

No

Suitable for front mounting 4-hole

No

Voltage release optional

Yes

Suitable for floor mounting

No

Device construction

Built-in device fixed built-in technique

Suitable for distribution board installation

Yes

Colour control element

Other

Suitable for front mounting centre

No

Suitable for intermediate mounting

No

Rated short-time withstand current lcw

42kA

Type of electrical connection of main circuit

Bolt connection

Version as main switch

Yes

Degree of protection (IP), front side

IP30

Degree of protection (NEMA)

Other
