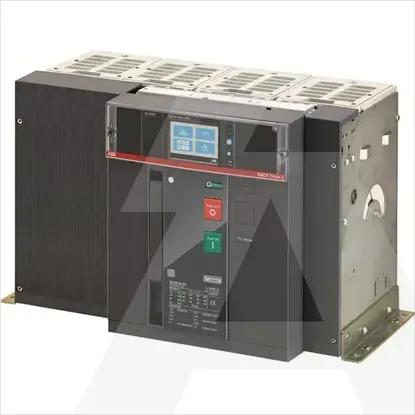

Main Product Image

1SDA071825R1 | E4.2N 4000 EKIP TOUCH LSI 4P FHR

Code: 1614711

ManufacturerRAZNO
Catalog number1SDA071825R1
Type
EAN code8015644756758

Details

  • Low-voltage industrial components
  • Power circuit-breaker for trafo/generator/installation protection
  • 1 KOM
  • ABB

Technical specifications

With integrated under voltage release

No

Rated voltage

690 - 690V

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

66kA

Rated permanent current Iu

4000A

Adjustment range undelayed short-circuit release

6000.0 - 60000A

Adjustment range short-term delayed short-circuit release

2400.0 - 40000A

Overload release current setting

1600.0 - 4000A

Device construction

Built-in device fixed built-in technique

Type of electrical connection of main circuit

Bolt connection

Integrated earth fault protection

No

Number of poles

4

Position of connection for main current circuit

Back side

Number of auxiliary contacts as normally closed contact

0

DIN rail (top hat rail) mounting optional

No

Type of control element

Push button

Suitable for DIN rail (top hat rail) mounting

No

Complete device with protection unit

Yes

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

4

With switched-off indicator

Yes

Motor drive optional

Yes

Degree of protection (IP)

IP30

Motor drive integrated

No


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
