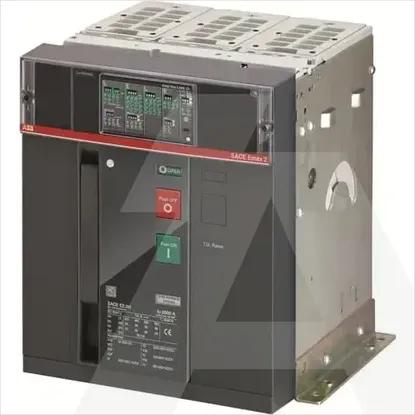

Main Product Image

1SDA071032R1 | E2.2N 2000 EKIP DIP LSI 3P FHR

Code: 1614068

ManufacturerRAZNO
Catalog number1SDA071032R1
Type
EAN code8015644748821

Details

  • Low-voltage industrial components
  • Power circuit-breaker for trafo/generator/installation protection
  • 1 KOM
  • ABB

Technical specifications

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

66kA

Rated permanent current Iu

2000A

Integrated earth fault protection

No

Rated voltage

690 - 690V

Adjustment range short-term delayed short-circuit release

1200.0 - 20000A

Overload release current setting

800.0 - 2000A

Suitable for DIN rail (top hat rail) mounting

No

Position of connection for main current circuit

Back side

With under voltage release

No

Number of auxiliary contacts as change-over contact

4

Device construction

Built-in device fixed built-in technique

Adjustment range undelayed short-circuit release

3000.0 - 30000A

Type of electrical connection of main circuit

Bolt connection

DIN rail (top hat rail) mounting optional

No

Type of control element

Push button

Motor drive integrated

No

With switched-off indicator

Yes

Degree of protection (IP)

IP30

Number of poles

3

Motor drive optional

Yes

Complete device with protection unit

Yes


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
