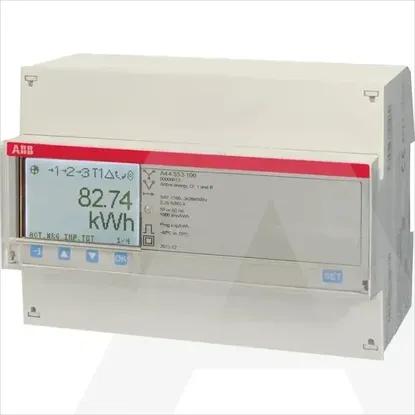

2CMA170546R1000 | A44 553-100
Code: 1596469
Details
- Meters
- Kilowatt-hour meter
- 1 KOM
- ABB
Technical specifications
Degree of protection (IP)
IP20
Model
Measurement transformer
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
7
Frequency
50 - 60Hz
Degree of protection (NEMA)
Other
Type of interface
RS-485
Suitable for
Purchase/supply
Nominal current (In)
1A
Max. current (Imax)
6A
Calibrated
Yes
Nominal voltage (Un) N-L
57.7 - 288V
Escapement mechanism
Yes
Measurement type load profile
Yes
With lock code
No
Number of positions total (counter)
7
EEC40 signature
No
Pulse rate
5000 - 5000Imp/kWh (kvarh)
Nominal voltage (Un) L-L
100 - 500V
Accuracy class
C
Type of indication
Digital
Type of meter
Electronic
Pole type
Four conductor
Energy type
Effective power and blind power
Pulse output
Electrical
Tariff type
Multi-tariff
Approval
Measuring Instruments Directive
Pulse type
S0
Tariff control
Internal/external
Power consumption
0.801W
Width
123mm
Depth
65mm
Height
26.5mm
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
