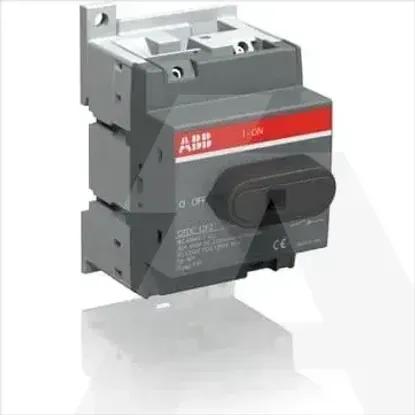

1SCA121456R1001 | OTDC32F2

Rated operation power at AC-3, 400 V

-kW

Max. rated operation voltage Ue AC

-V

Conditioned rated short-circuit current Iq

-kA

Rated permanent current at AC-21, 400 V

-A

Switching power at 400 V

-kW

Rated operation power at AC-23, 400 V

-kW

Rated permanent current at AC-23, 400 V

-A

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Version as safety switch

No

Version as main switch

Yes

Version as emergency stop installation

No

Version as maintenance-/service switch

Yes

Suitable for front mounting centre

No

Number of switches

1

Version as reversing switch

No

Suitable for floor mounting

No

Rated operating voltage

1000 - 1000V

Rated permanent current Iu

45A

Type of control element

Short thumb-grip

Colour control element

Black

Suitable for front mounting 4-hole

No

Type of electrical connection of main circuit

Screw connection

Degree of protection (IP), front side

IP20

Number of poles

2

Suitable for distribution board installation

Yes

Voltage release optional

No

Degree of protection (NEMA)

1

Motor drive integrated

No

Motor drive optional

No

Rated short-time withstand current lcw

0.8kA

Interlockable

Yes

Device construction

Built-in device fixed built-in technique

Suitable for intermediate mounting

No
