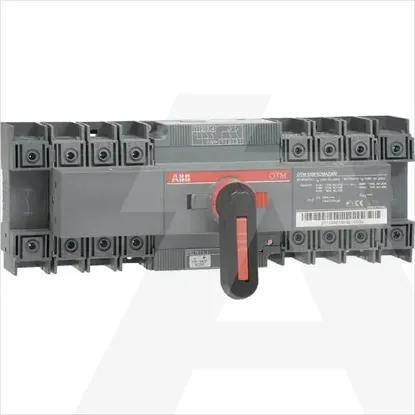

1SCA120097R1001 | OTM125F4CMA230V

Rated permanent current Iu

-A

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Version as maintenance-/service switch

Yes

Version as main switch

Yes

Version as emergency stop installation

No

Number of switches

1

Version as safety switch

No

Version as reversing switch

No

Max. rated operation voltage Ue AC

800V

Rated permanent current at AC-23, 400 V

90A

Rated permanent current at AC-21, 400 V

125A

Rated short-time withstand current lcw

2.5kA

Number of poles

4

Motor drive optional

No

Switching power at 400 V

45kW

Rated operation power at AC-23, 400 V

45kW

Voltage release optional

No

Device construction

Built-in device plug-in technique

Type of control element

Long turning handle

Suitable for distribution board installation

Yes

Colour control element

Black

Suitable for floor mounting

No

Degree of protection (NEMA)

1

Suitable for intermediate mounting

No

Suitable for front mounting 4-hole

Yes

Interlockable

Yes

Rated operating voltage

800 - 800V

Degree of protection (IP), front side

IP20

Motor drive integrated

Yes

Suitable for front mounting centre

No
