Aleta.hr

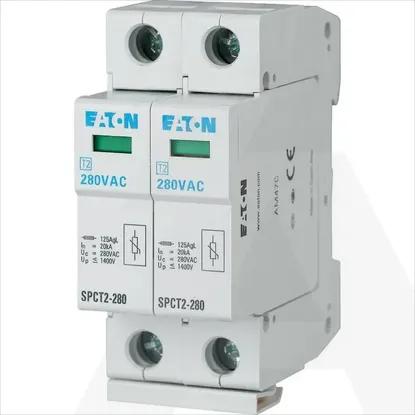

Main Product Image

SPCT2-280/2

Code: 1577885

ManufacturerRAZNO
Catalog number167594
Type
EAN code4015081640867

Details

  • Earthing, lightning and surge protection
  • Surge protection device for power supply systems
  • 1 KOM
  • EATON

Technical specifications

System configuration DC

No

System configuration TN

Yes

System configuration TN-C-S

No

System configuration other

Yes

Nominal discharge surge current (8/20)

20kA

System configuration TN-S

Yes

Nominal voltage DC

0V

Max. discharge surge current (8/20)

40kA

System configuration TT

No

System configuration IT

No

Nominal voltage AC

280V

Voltage protection level

1.4kV

Max. continuous voltage AC

280V

Short-circuit breaking capacity (Isccr)

0kA

Max. PV-voltage

0V

System configuration TN-C

No

Max. continuous voltage DC

0V

Max. overcurrent protection device, series connection (fuse)

125A

Voltage protection level L-N

0kV

Integrated short-circuit protection selective to fuse gG

0A

Leakage-current free

No

Integrated short-circuit protection

No

Number of conductors (without earthing)

2

Integrated backup fuse

No

Max. overcurrent protection device, parallel connection (fuse)

0A

Voltage protection level N-PE

0kV

Max. conductor cross section solid (solid, stranded)

25mm²

Construction size

2 modular spacing

Max. conductor cross section flexible (fine-strand)

35mm²

Signalling at the device

Optic

Mounting method

DIN rail (top hat rail) 35 mm

Degree of protection (IP)

IP20

With remote signalling contact

No

Category type 2

Yes


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
