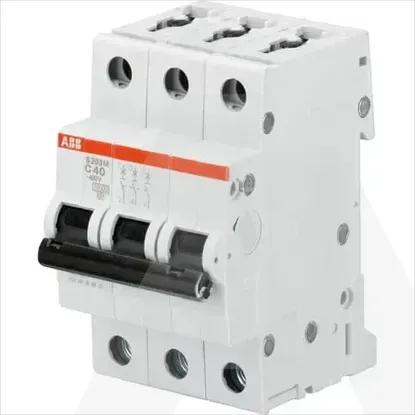

2CDS273001R0401 | S203M-D40
Code: 1550009
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
36,74 €
Neto36,74 €
RP45,93 €
DetailsWarehouse statesTechnical specifications
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Suitable for flush-mounted installation
No
Built-in depth
69mm
Release characteristic
D
Number of poles (total)
3
Number of protected poles
3
Rated current
40A
Rated voltage
400V
Rated insulation voltage Ui
440V
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Frequency
50 - 60Hz
Power loss
12.6W
Flush-mounted installation
No
Current limiting class
3
Concurrently switching neutral conductor
No
Over voltage category
3
Pollution degree
3
Additional equipment possible
Yes
Width in number of modular spacings
3.0
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 55°C
Connectable conductor cross section multi-wired
0.75 - 25mm²
Connectable conductor cross section solid-core
0.75 - 35mm²
Explosion-proof
No
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
