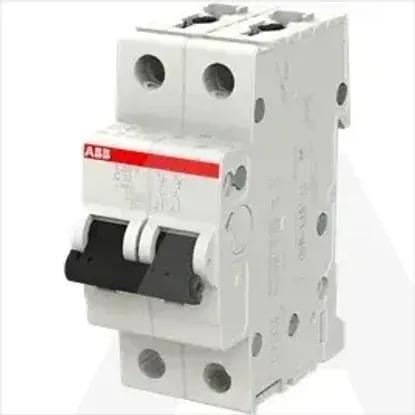

2CDS272001R0324 | S202M-C32

Number of poles (total)

2

Rated insulation voltage Ui

440V

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA

Release characteristic

C

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Number of protected poles

2

Rated impulse withstand voltage Uimp

4kV

Rated voltage

400V

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10kA

Rated current

32A

Suitable for flush-mounted installation

No

Current limiting class

3

Concurrently switching neutral conductor

No

Voltage type

AC/DC

Connectable conductor cross section multi-wired

0 - 25mm²

Built-in depth

71mm

Ambient temperature during operating

-25 - 55°C

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

25kA

Width in number of modular spacings

2

Connectable conductor cross section solid-core

0 - 35mm²

Degree of protection (IP)

IP20

Pollution degree

3

Additional equipment possible

Yes

Over voltage category

3

Frequency

50 - 60Hz
