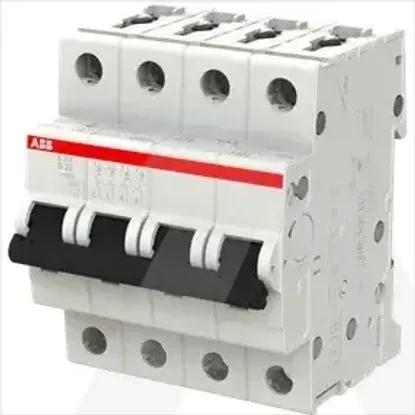

2CDS254001R0205 | S204-B20

Rated impulse withstand voltage Uimp

4kV

Number of poles (total)

4

Rated voltage

400V

Release characteristic

B

Voltage type

AC/DC

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6kA

Frequency

50 - 60Hz

Number of protected poles

4

Rated insulation voltage Ui

440V

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6kA

Rated current

20A

Current limiting class

3

Suitable for flush-mounted installation

No

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

20kA

Built-in depth

69mm

Over voltage category

3

Additional equipment possible

Yes

Width in number of modular spacings

4

Pollution degree

3

Connectable conductor cross section multi-wired

0 - 25mm²

Ambient temperature during operating

-25 - 55°C

Concurrently switching neutral conductor

No

Degree of protection (IP)

IP20

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

20kA

Connectable conductor cross section solid-core

0 - 35mm²
