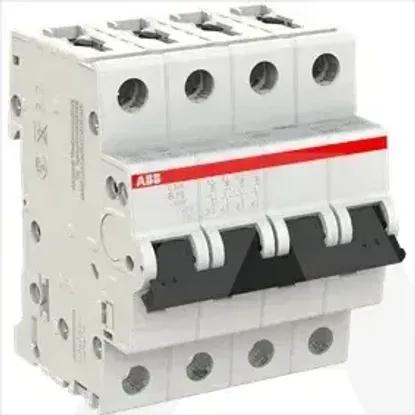

2CDS254001R0105 | S204-B10

Release characteristic

B

Number of poles (total)

4

Rated voltage

400V

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

20kA

Number of protected poles

4

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6kA

Rated current

10A

Rated insulation voltage Ui

440V

Voltage type

AC/DC

Frequency

50 - 60Hz

Ambient temperature during operating

-25 - 55°C

Degree of protection (IP)

IP20

Connectable conductor cross section multi-wired

0 - 25mm²

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

20kA

Over voltage category

3

Width in number of modular spacings

4

Built-in depth

69mm

Pollution degree

3

Additional equipment possible

Yes

Connectable conductor cross section solid-core

0 - 35mm²

Current limiting class

3

Concurrently switching neutral conductor

No

Suitable for flush-mounted installation

No
