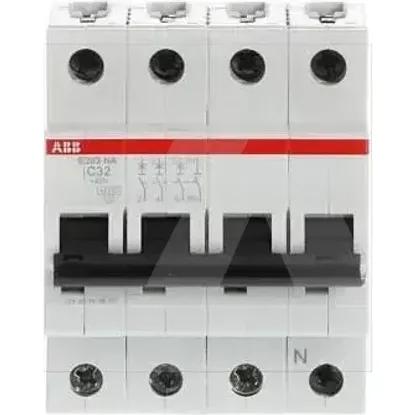

Main Product Image

2CDS253103R0324 | S203-C32 NA

Code: 1549424

ManufacturerABB
Catalog number
EAN code4016779610131
Order only
Zagreb0 pcs
Zadar0 pcs

Sign in or create an account for lower prices and other benefits


WSP*
33,72 €
Neto33,72
RP42,15
pcs

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Built-in depth

69mm

Number of protected poles

3

Release characteristic

C

Rated current

32A

Number of poles (total)

4

Rated impulse withstand voltage Uimp

4kV

Rated insulation voltage Ui

440V

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

20kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Rated voltage

400V

Voltage type

Other

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6kA

Current limiting class

3

Frequency

50 - 60Hz

Power loss

14.8W

Flush-mounted installation

No

Over voltage category

3

Degree of protection (IP)

IP20

Concurrently switching neutral conductor

Yes

Ambient temperature during operating

-25 - 55°C

Pollution degree

3

Connectable conductor cross section multi-wired

0.75 - 25mm²

Additional equipment possible

Yes

Connectable conductor cross section solid-core

0.75 - 35mm²

Width in number of modular spacings

4.0

Explosion-proof

No


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
