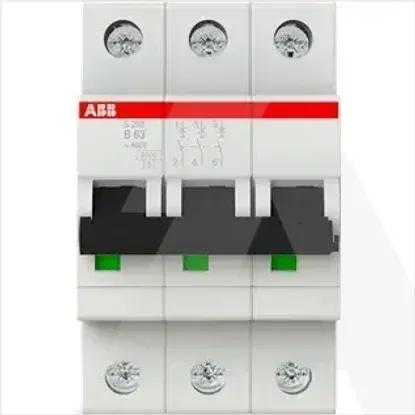

2CDS253001R0635 | S203-B63
Code: 1549379
In stock 8 pcs
Zagreb8 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
Possible delivery within 24h
WSP*
40,61 €
Neto40,61 €
RP50,76 €
DetailsWarehouse statesTechnical specificationsFrom same serie
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Rated voltage
400V
Number of poles (total)
3
Number of protected poles
3
Rated impulse withstand voltage Uimp
4kV
Rated current
63A
Release characteristic
B
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Frequency
50 - 60Hz
Suitable for flush-mounted installation
No
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
20kA
Over voltage category
3
Concurrently switching neutral conductor
No
Voltage type
AC
Current limiting class
3
Additional equipment possible
Yes
Pollution degree
3
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 55°C
Connectable conductor cross section multi-wired
0 - 25mm²
Width in number of modular spacings
3
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Built-in depth
69mm
Connectable conductor cross section solid-core
0 - 35mm²
Power loss
14.4W
Flush-mounted installation
No
Explosion-proof
No
Warehouse states
Zagreb:
8 pcs
Zadar:
0 pcs
From same serie
