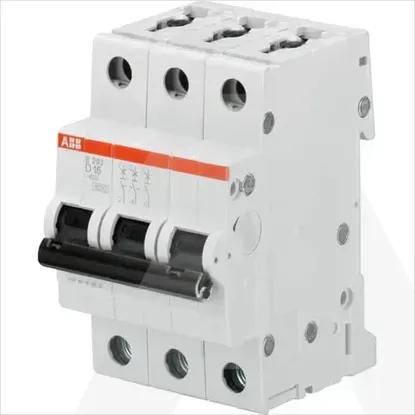

Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Rated current
25A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Over voltage category
3
Frequency
50 - 60Hz
Release characteristic
D
Concurrently switching neutral conductor
No
Current limiting class
3
Number of protected poles
3
Pollution degree
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
20kA
Rated voltage
400V
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated impulse withstand voltage Uimp
4kV
Number of poles (total)
3
Voltage type
AC
Suitable for flush-mounted installation
No
Degree of protection (IP)
IP20
Built-in depth
69mm
Additional equipment possible
Yes
Width in number of modular spacings
3
Ambient temperature during operating
-25 - 55°C
Connectable conductor cross section solid-core
0 - 35mm²
Connectable conductor cross section multi-wired
0 - 25mm²
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
