Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Number of poles (total)
2
Release characteristic
D
Rated insulation voltage Ui
440V
Number of protected poles
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated current
32A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Frequency
50 - 60Hz
Voltage type
AC/DC
Rated impulse withstand voltage Uimp
4kV
Concurrently switching neutral conductor
No
Over voltage category
3
Current limiting class
3
Ambient temperature during operating
-25 - 55°C
Additional equipment possible
Yes
Built-in depth
69mm
Connectable conductor cross section multi-wired
0 - 25mm²
Width in number of modular spacings
2
Suitable for flush-mounted installation
No
Pollution degree
3
Connectable conductor cross section solid-core
0 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
20kA
Degree of protection (IP)
IP20
Rated voltage
400V
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.

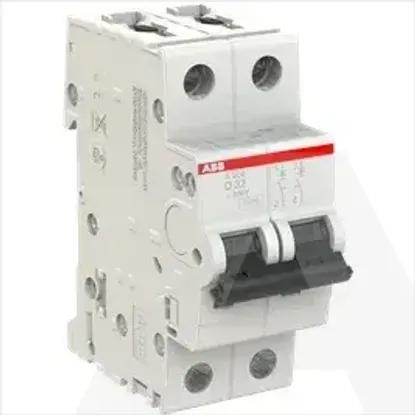

2CDS252001R0321 | S202-D32
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsWarehouse statesTechnical specifications
Technical specifications
Number of poles (total)
2
Release characteristic
D
Rated insulation voltage Ui
440V
Number of protected poles
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated current
32A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Frequency
50 .. 60Hz
Voltage type
AC/DC
Rated impulse withstand voltage Uimp
4kV
Concurrently switching neutral conductor
Over voltage category
3
Current limiting class
3
Ambient temperature during operating
-25 .. 55°C
Additional equipment possible
Built-in depth
69mm
Connectable conductor cross section multi-wired
0 .. 25mm²
Width in number of modular spacings
2
Suitable for flush-mounted installation
Pollution degree
3
Connectable conductor cross section solid-core
0 .. 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
20kA
Degree of protection (IP)
IP20
Rated voltage
400V
From same serie
