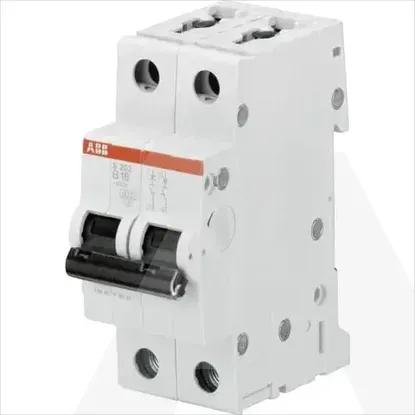

2CDS252001R0165 | S202-B16
Code: 1549234
Additional quantity for delivery +40 kom
04.03.2025 + 40 pcs
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Release characteristic
B
Rated insulation voltage Ui
440V
Number of poles (total)
2
Current limiting class
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated impulse withstand voltage Uimp
4kV
Rated voltage
400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
20kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Pollution degree
3
Frequency
50 - 60Hz
Number of protected poles
2
Built-in depth
68mm
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0 - 35mm²
Rated current
16A
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 55°C
Voltage type
AC/DC
Connectable conductor cross section multi-wired
0 - 25mm²
Width in number of modular spacings
2
Additional equipment possible
Yes
Suitable for flush-mounted installation
No
Over voltage category
3
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
