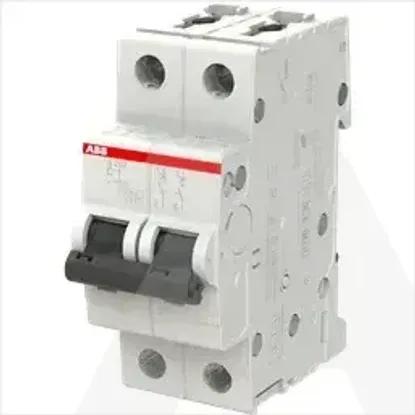

Main Product Image

2CDS252001R0014 | S202-C1

Code: 1549212

ManufacturerRAZNO
Catalog number2CDS252001R0014
Type
EAN code4016779523363

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Number of protected poles

2

Release characteristic

C

Rated voltage

400V

Rated insulation voltage Ui

440V

Number of poles (total)

2

Rated current

1A

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10kA

Frequency

50 - 60Hz

Suitable for flush-mounted installation

No

Voltage type

AC/DC

Concurrently switching neutral conductor

No

Additional equipment possible

Yes

Rated impulse withstand voltage Uimp

4kV

Connectable conductor cross section multi-wired

0 - 25mm²

Degree of protection (IP)

IP20

Built-in depth

68mm

Current limiting class

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6kA

Width in number of modular spacings

2

Over voltage category

3

Pollution degree

3

Connectable conductor cross section solid-core

0 - 35mm²

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

20kA

Ambient temperature during operating

-25 - 55°C


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
