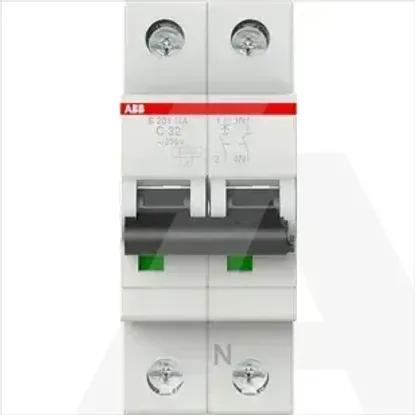

Main Product Image

2CDS251103R0324 | S201-C 32 NA

Code: 1549163

ManufacturerRAZNO
Catalog number2CDS251103R0324
Type
EAN code4016779531801

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Rated current

32A

Release characteristic

C

Number of protected poles

1

Rated voltage

230V

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6kA

Frequency

50 - 60Hz

Rated impulse withstand voltage Uimp

4kV

Voltage type

AC/DC

Suitable for flush-mounted installation

No

Current limiting class

3

Rated insulation voltage Ui

440V

Number of poles (total)

2

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10kA

Over voltage category

3

Connectable conductor cross section multi-wired

0 - 25mm²

Degree of protection (IP)

IP20

Connectable conductor cross section solid-core

0 - 35mm²

Width in number of modular spacings

2

Pollution degree

3

Additional equipment possible

Yes

Ambient temperature during operating

-25 - 55°C

Built-in depth

69mm

Concurrently switching neutral conductor

Yes


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
