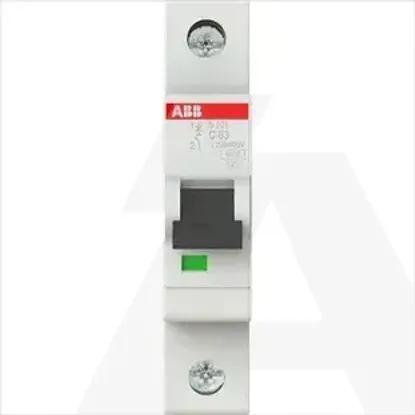

2CDS251001R0634 | S201-C63

Number of protected poles

1

Release characteristic

C

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10kA

Current limiting class

3

Frequency

50 - 60Hz

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6kA

Rated impulse withstand voltage Uimp

4kV

Number of poles (total)

1

Over voltage category

3

Additional equipment possible

Yes

Suitable for flush-mounted installation

No

Rated current

63A

Width in number of modular spacings

1

Rated voltage

230V

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6kA

Pollution degree

2

Rated insulation voltage Ui

440V

Connectable conductor cross section solid-core

0 - 35mm²

Built-in depth

69mm

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10kA

Concurrently switching neutral conductor

No

Ambient temperature during operating

-25 - 55°C

Degree of protection (IP)

IP20

Connectable conductor cross section multi-wired

0 - 25mm²

Voltage type

AC/DC
