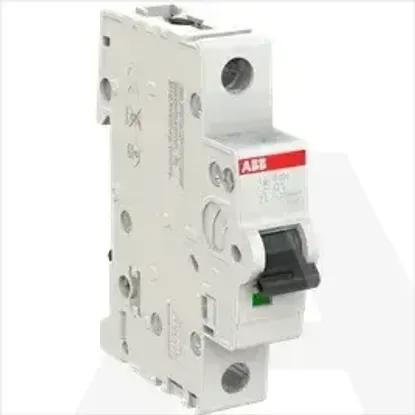

2CDS251001R0011 | S201-D1
Code: 1549038
In stock 1 pcs
Zagreb1 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
Possible delivery within 24h
WSP*
9,26 €
Neto9,26 €
RP11,58 €
DetailsWarehouse statesTechnical specificationsFrom same serie
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Suitable for flush-mounted installation
No
Built-in depth
69mm
Release characteristic
D
Number of poles (total)
1
Number of protected poles
1
Rated current
1A
Rated voltage
230V
Rated insulation voltage Ui
440V
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Power loss
1.25W
Frequency
50 - 60Hz
Flush-mounted installation
No
Current limiting class
3
Concurrently switching neutral conductor
No
Over voltage category
3
Pollution degree
3
Additional equipment possible
Yes
Width in number of modular spacings
1.0
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 55°C
Connectable conductor cross section multi-wired
0.75 - 25mm²
Explosion-proof
No
Connectable conductor cross section solid-core
0.75 - 35mm²
Warehouse states
Zagreb:
1 pcs
Zadar:
0 pcs
From same serie
