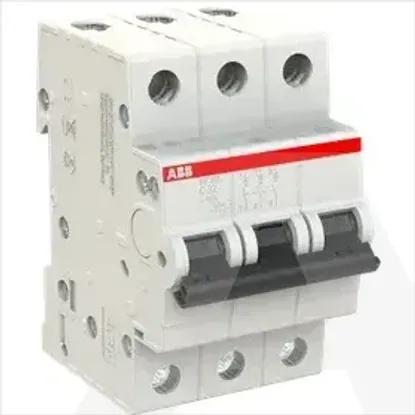

2CDS213001R0324 | SH203-C32
Code: 1549017
In stock 59 pcs
Zagreb59 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
Possible delivery within 24h
WSP*
15,08 €
Neto15,08 €
RP18,85 €
DetailsWarehouse statesTechnical specificationsFrom same serie
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Degree of protection (IP)
IP2X
Voltage type
AC
Suitable for flush-mounted installation
No
Rated current
32A
Width in number of modular spacings
3
Built-in depth
69mm
Rated voltage
400V
Release characteristic
C
Ambient temperature during operating
-25 - 55°C
Connectable conductor cross section multi-wired
0 - 25mm²
Number of protected poles
3
Connectable conductor cross section solid-core
0 - 25mm²
Concurrently switching neutral conductor
No
Over voltage category
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6kA
Rated insulation voltage Ui
440V
Number of poles (total)
3
Rated impulse withstand voltage Uimp
4kV
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
6kA
Additional equipment possible
No
Frequency
50 - 60Hz
Pollution degree
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Flush-mounted installation
No
Explosion-proof
No
Power loss
11.1W
Warehouse states
Zagreb:
59 pcs
Zadar:
0 pcs
From same serie
