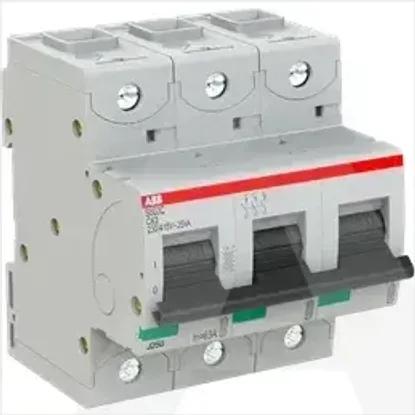

2CCS883001R0634 | S803C-C63
Code: 1548192
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
129,44 €
Neto129,44 €
RP161,80 €
DetailsWarehouse statesTechnical specifications
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Degree of protection (IP)
IP20
Voltage type
AC
Rated current
63A
Suitable for flush-mounted installation
No
Width in number of modular spacings
3
Rated voltage
440V
Built-in depth
82.5mm
Ambient temperature during operating
-25 - 60°C
Release characteristic
C
Connectable conductor cross section multi-wired
0 - 70mm²
Connectable conductor cross section solid-core
0 - 50mm²
Number of protected poles
3
Rated impulse withstand voltage Uimp
8kV
Number of poles (total)
3
Rated insulation voltage Ui
500V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Current limiting class
3
Additional equipment possible
Yes
Frequency
50 - 60Hz
Pollution degree
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
15kA
Over voltage category
4
Concurrently switching neutral conductor
No
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
15kA
Power loss
19.2W
Flush-mounted installation
No
Explosion-proof
No
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
