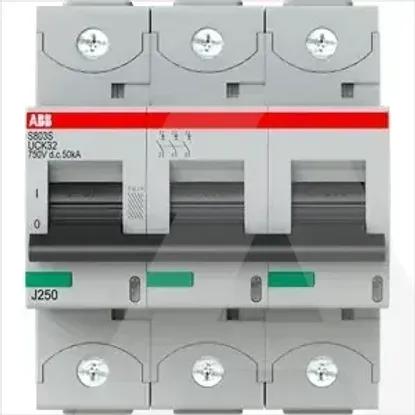

2CCS863001R1537 | S803S-UCK32

Number of poles (total)

3

Release characteristic

K

Number of protected poles

3

Rated current

32A

Rated voltage

750V

Rated impulse withstand voltage Uimp

8kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

50kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

50kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50kA

Rated insulation voltage Ui

1000V

Voltage type

DC

Current limiting class

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

50kA

Frequency

0 - 0Hz

Suitable for flush-mounted installation

No

Degree of protection (IP)

IP20

Width in number of modular spacings

3

Pollution degree

2

Built-in depth

82.5mm

Connectable conductor cross section solid-core

0 - 50mm²

Additional equipment possible

Yes

Concurrently switching neutral conductor

No

Connectable conductor cross section multi-wired

0 - 70mm²

Over voltage category

3

Ambient temperature during operating

-25 - 60°C
