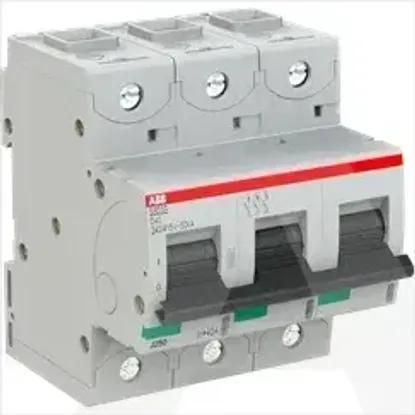

Main Product Image

2CCS863001R0401 | S803S-D40

Code: 1547752

ManufacturerRAZNO
Catalog number2CCS863001R0401
Type
EAN code7612271201265

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Release characteristic

D

Number of poles (total)

3

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50kA

Number of protected poles

3

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

50kA

Concurrently switching neutral conductor

No

Rated insulation voltage Ui

690V

Connectable conductor cross section multi-wired

0 - 70mm²

Current limiting class

3

Built-in depth

88.5mm

Rated current

40A

Voltage type

AC/DC

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

25kA

Rated voltage

690V

Degree of protection (IP)

IP20

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

25kA

Suitable for flush-mounted installation

No

Pollution degree

2

Additional equipment possible

Yes

Rated impulse withstand voltage Uimp

8kV

Connectable conductor cross section solid-core

0 - 50mm²

Width in number of modular spacings

3

Frequency

0 - 50Hz

Over voltage category

3

Ambient temperature during operating

-25 - 60°C


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
