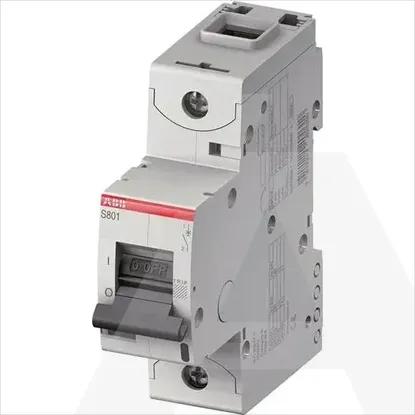

2CCS861001R0164 | S801S-C16

Release characteristic

C

Number of poles (total)

1

Number of protected poles

1

Rated current

16A

Rated voltage

400V

Rated impulse withstand voltage Uimp

8kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

25kA

Rated insulation voltage Ui

690V

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

25kA

Frequency

50 - 60Hz

Suitable for flush-mounted installation

No

Concurrently switching neutral conductor

No

Voltage type

AC

Current limiting class

3

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

50kA

Pollution degree

3

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50kA

Width in number of modular spacings

1

Built-in depth

82.5mm

Additional equipment possible

Yes

Degree of protection (IP)

IP20

Connectable conductor cross section multi-wired

0 - 70mm²

Connectable conductor cross section solid-core

0 - 50mm²

Over voltage category

3

Ambient temperature during operating

-25 - 60°C
