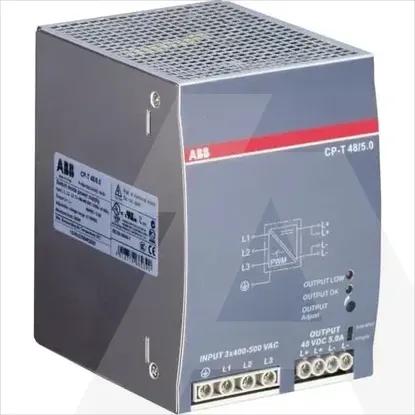

1SVR427054R2000 | CP-T 48/5.0
Code: 1543315
Details
- Low-voltage industrial components
- DC-power supply
- 1 KOM
- ABB
Technical specifications
Width in number of modular spacings
-
Max. output current 1
-A
Voltage type of supply voltage
AC/DC
1st secondary output voltage
48 - 48V
2nd secondary output voltage
0 - 0V
Max. output current 2
0A
3rd secondary output voltage
0 - 0V
Max. output current 3
0A
Secondary voltage adjustable
No
Nominal value output voltage 2
0V
Nominal value output voltage 1
48V
Nominal value output voltage 3
0V
Nominal value output current 2
0A
Nominal value output current 3
0A
Nominal value output current 1
5A
Short-circuit-proof
Yes
Rated supply voltage at AC 50 Hz
340 - 575V
Rated supply voltage at AC 60 Hz
340 - 575V
Rated supply voltage at DC
480 - 820V
Output voltage stabilized
Yes
Power consumption
264VA
Power output
240W
Stabilized
Yes
Type of electric connection
Screw connection
Rail mounting possible
Yes
Wall mounting possible
No
Modular version
No
Built-in width
89mm
Built-in height
131mm
Direct mounting possible
No
Width
89mm
Height
131mm
Depth
119mm
Suitable for safety functions
No
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Degree of protection (IP)
IP20
Degree of protection (NEMA)
1
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
