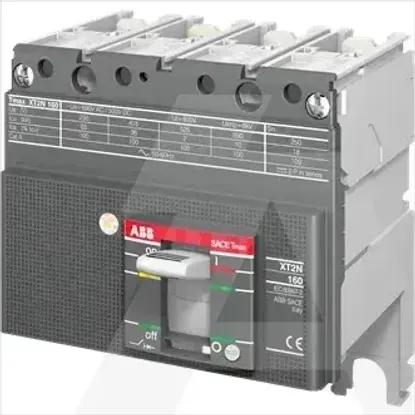

1SDA068168R1 | XT2N 160 TIJELO PREKIDACA 4p F F

Overload release current setting

- - -A

Adjustment range undelayed short-circuit release

- - -A

Adjustment range short-term delayed short-circuit release

- - -A

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Type of electrical connection of main circuit

Bolt connection

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

36kA

Suitable for DIN rail (top hat rail) mounting

No

Rated permanent current Iu

160A

Device construction

Built-in device fixed built-in technique

DIN rail (top hat rail) mounting optional

Yes

Integrated earth fault protection

No

With under voltage release

No

Position of connection for main current circuit

Front side

Rated voltage

220 - 690V

With switched-off indicator

No

Type of control element

Toggle

Motor drive integrated

No

Degree of protection (IP)

IP20

Motor drive optional

Yes

Complete device with protection unit

No

Number of poles

4
