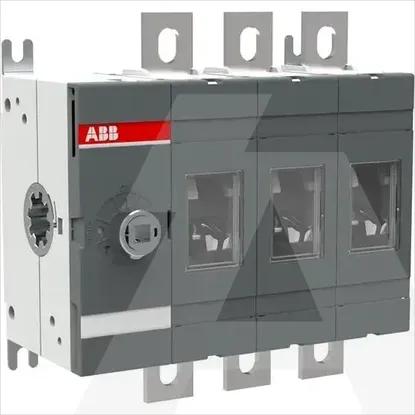

1SCA120509R1001 | OT160EV03
Code: 1525370
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
81,14 €
Neto81,14 €
RP101,43 €
DetailsWarehouse statesTechnical specifications
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- ABB
Technical specifications
Rated operation power at AC-3, 400 V
-kW
Suitable for floor mounting
No
Suitable for intermediate mounting
No
Suitable for distribution board installation
No
Conditioned rated short-circuit current Iq
-kA
Number of switches
-
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
1000V
Rated operating voltage
1000 - 1000V
Rated permanent current Iu
160A
Rated permanent current at AC-23, 400 V
160A
Rated permanent current at AC-21, 400 V
200A
Rated short-time withstand current lcw
8kA
Rated operation power at AC-23, 400 V
88kW
Switching power at 400 V
88kW
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Number of poles
3
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Type of control element
Other
Interlockable
No
With pre-assembled cabling
No
Type of electrical connection of main circuit
Bolt connection
Height
145.5mm
Width in number of modular spacings
-
Width
150mm
Degree of protection (IP), front side
IP00
Depth
82.5mm
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
